Nhà Sản phẩmĐộng cơ quạt ngưng

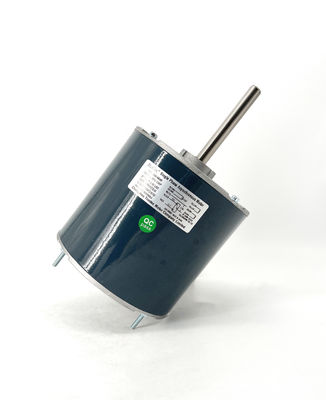

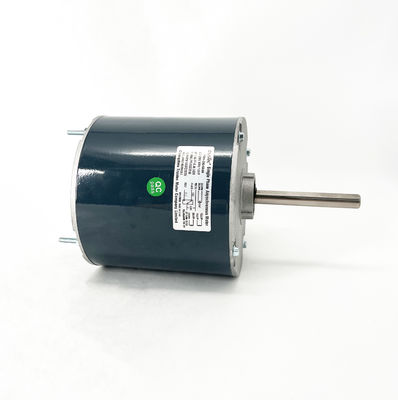

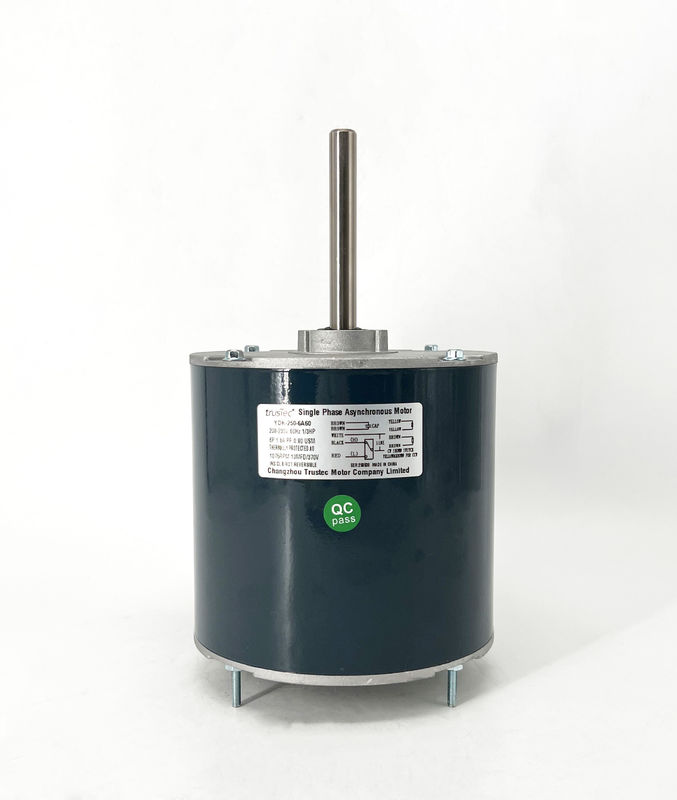

Động cơ quạt dàn ngưng YDK-250-6A60-250W 1075RPM 208-230V 60HZ

Động cơ quạt dàn ngưng YDK-250-6A60-250W 1075RPM 208-230V 60HZ

Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Condenser Fan Motor YDK-250-6A60-250W 1075RPM 208-230V 60HZ
Thông tin chi tiết sản phẩm:
Place of Origin: Changzhou, China
Hàng hiệu: trusTec
Chứng nhận: CE、UL529388
Model Number: YDK-250-6A60-USM
Thanh toán:
Minimum Order Quantity: 200 pcs
Giá bán: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Tiếp xúc
Chi tiết sản phẩm
Product: Condenser Fan Motor Frame: 142mm
Motor Type: Permanent Split Capacitor Supply Voltage: 208-230V
Enclosure Type: TEAO(Totally Enclosed Air Over) Supply Frequency: 60Hz
Thermal Overload: Equipped With An Automatic Thermal Overload Current: 1.8A
Phase: Single Phase Output HP: 250W
Shaft Flat: One Flat Speed: 1075RPM
Mounting Orientation: All Angle Capacitor: 10MFD/370V
Insulation Class: Class B Pole: 6P
Bearings: Ball Bearing Shaft Diameter: 12mm/0.47"
Rotation: Reversible Shaft Length: 101.6mm/4.00"
PF: 0.90 Flat Length: 90mm/3.54"
Max. Ambient Temperature: 40℃/104℉ Lead Length: 890mm/35.04"
Motor Shell Length: 135mm/5.31" Screw Length: 13mm/0.51"
