Điều hòa không khí trục kép FCU Motor
Double Shaft Air Conditioning FCU Motor Motor Application: Fan coil motor is used in various fan coil unit, including indoor fan coil unit of central air conditioner, kinds of high static pressure air conditioner fan coil, axial and cross flow fan. Technical Parameters: Note: Listed are representative motors, only for reference, dimensions can be customized according to customer requirements. OEM/ODM can be offered. Model Number Voltage /V Frequency /Hz Power /W Current /A
-
Động cơ đơn trục cuộn dây động cơ
16W 4 pole three speed asynchronous fan coil motor used in commercial air curtain machine Motor Application: Fan coil Indoor unit of ceil aircon Central aircon EVEs Commercial air curtain machine Sterilization equipments Technical Parameters: Model Number Voltage /V Frequency /Hz Power /W Current /A Speed /RPM Capacitance /uF YDK110-8-6 220-240 50/60 8 0.12 700/560/450 1.2 YDK110-10-4 220-240 50/60 10 0.15 750/600/480 1.2 YDK110-16-4 220-240 50/60 16 0.17 800/640/510 1.5
-
Động cơ quạt dàn ống 48 khung - 1/6HP 230V 50/60HZ 1330RPM/3SPD
-
Động cơ quạt dàn lạnh 48 khung - 1/4HP 230V 50/60HZ 1330RPM/3 TỐC ĐỘ
-
Băng hình
Động cơ cuộn quạt 48 khung - 1/5HP 230V 50/60HZ 1300RPM / 3SPD
-
Băng hình
Động cơ cuộn quạt khung 42 - 90W 220-240V 50HZ 1330RPM / 4SPD
-
Băng hình

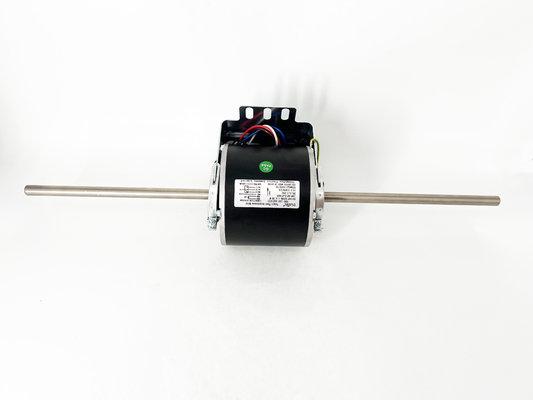

Động cơ cuộn quạt khung 42 - 120W 220-240V 50/60HZ 1300RPM / 3SPD
-
Băng hình
Động cơ cuộn quạt 48 khung - 185W 1/4HP 230V 50/60HZ 1300RPM / 3SPD
-
Động cơ tùy chỉnh FCU - 90W 240V 60HZ 1000RPM / 3SPD
5-Step Selection Methodology Step 1: Match Electrical Specifications (The Non-Negotiables) First, locate the nameplate on your existing motor. This is your most important source of truth. You must verify: Voltage & Phase: Common voltages are 115V or 230V, single-phase. Warning: Operating a motor on incorrect voltage will cause it to burn out. Horsepower (HP) or Wattage: The replacement motor must have an equal or slightly higher rating. Use conversion: 1 HP ≈ 746 Watts. RPM
